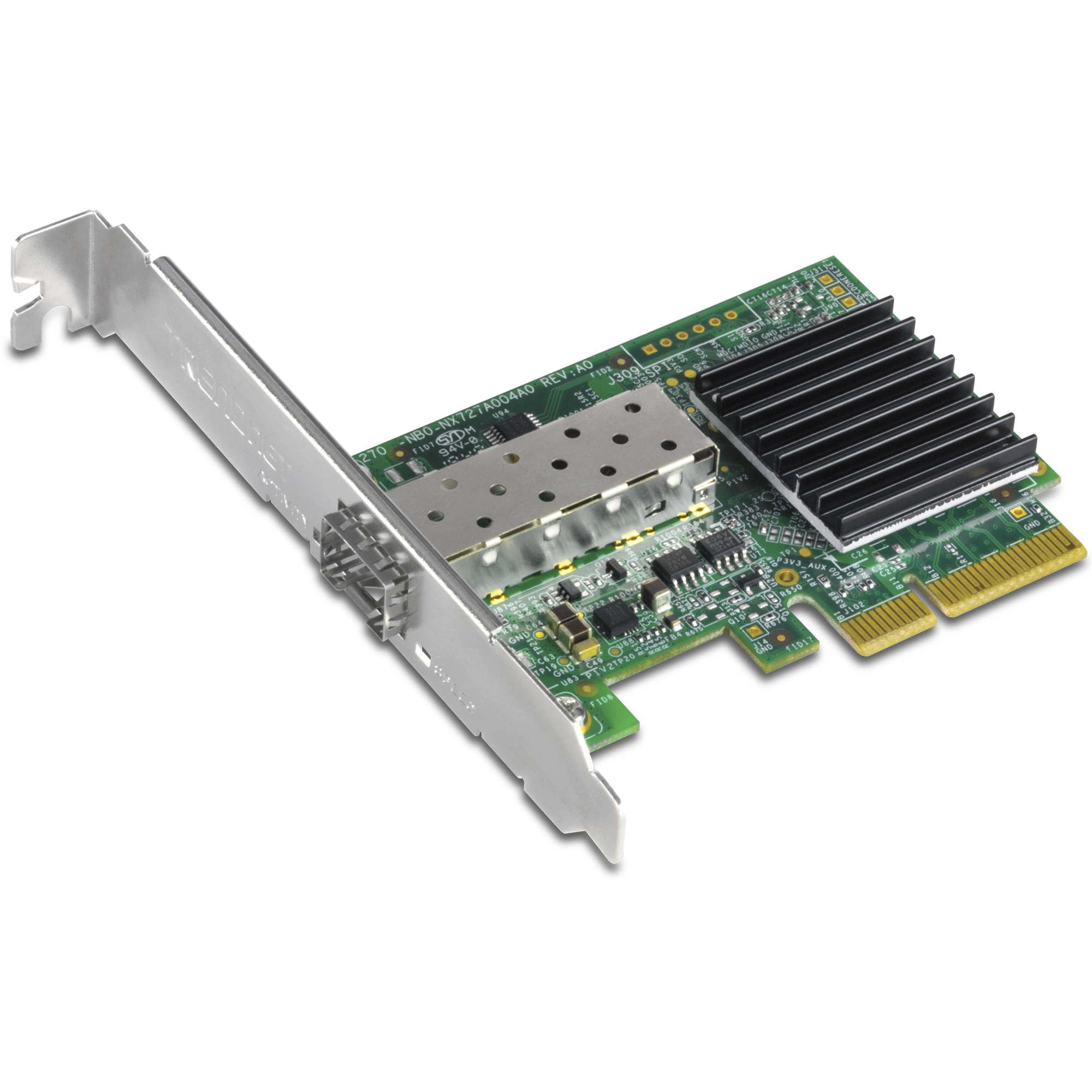

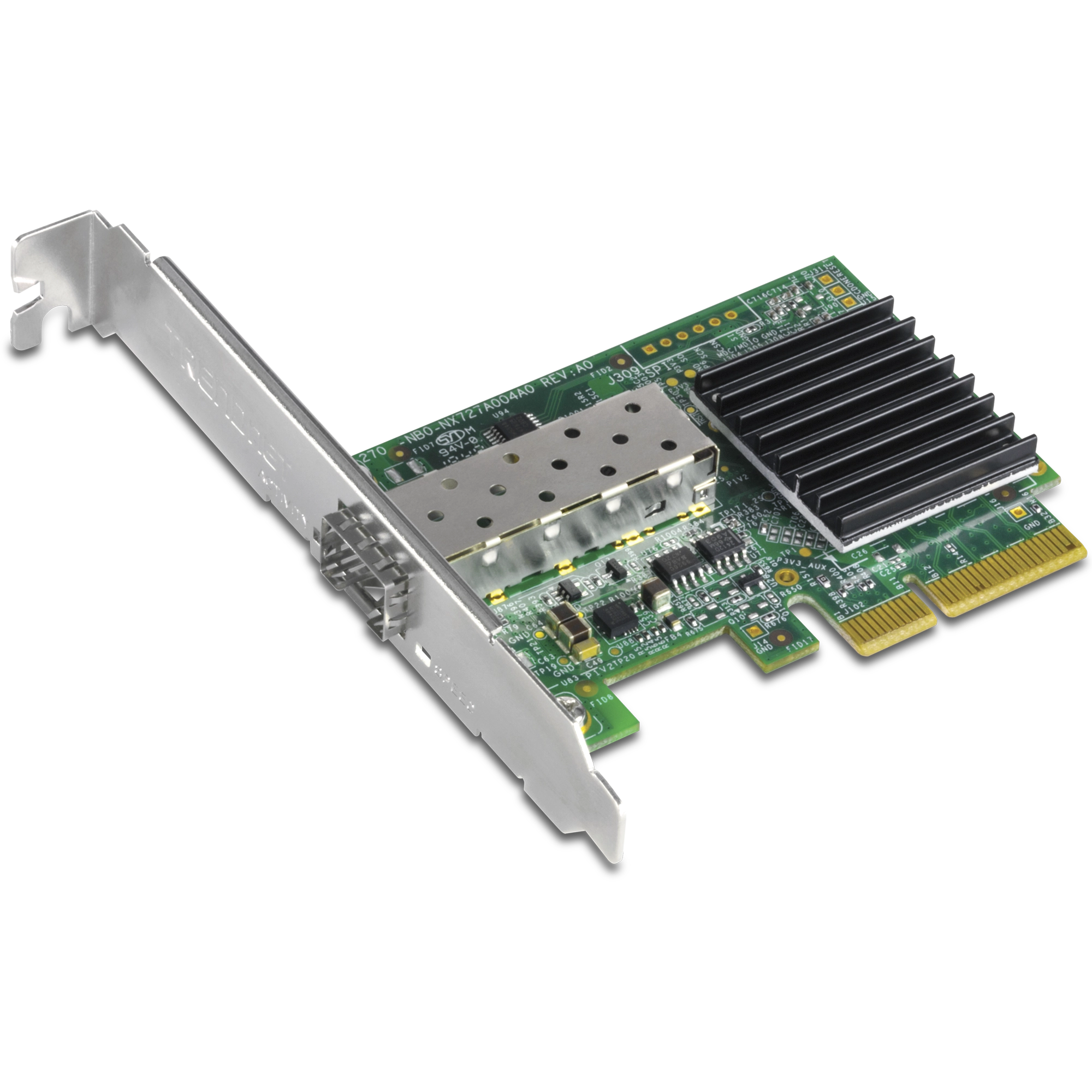

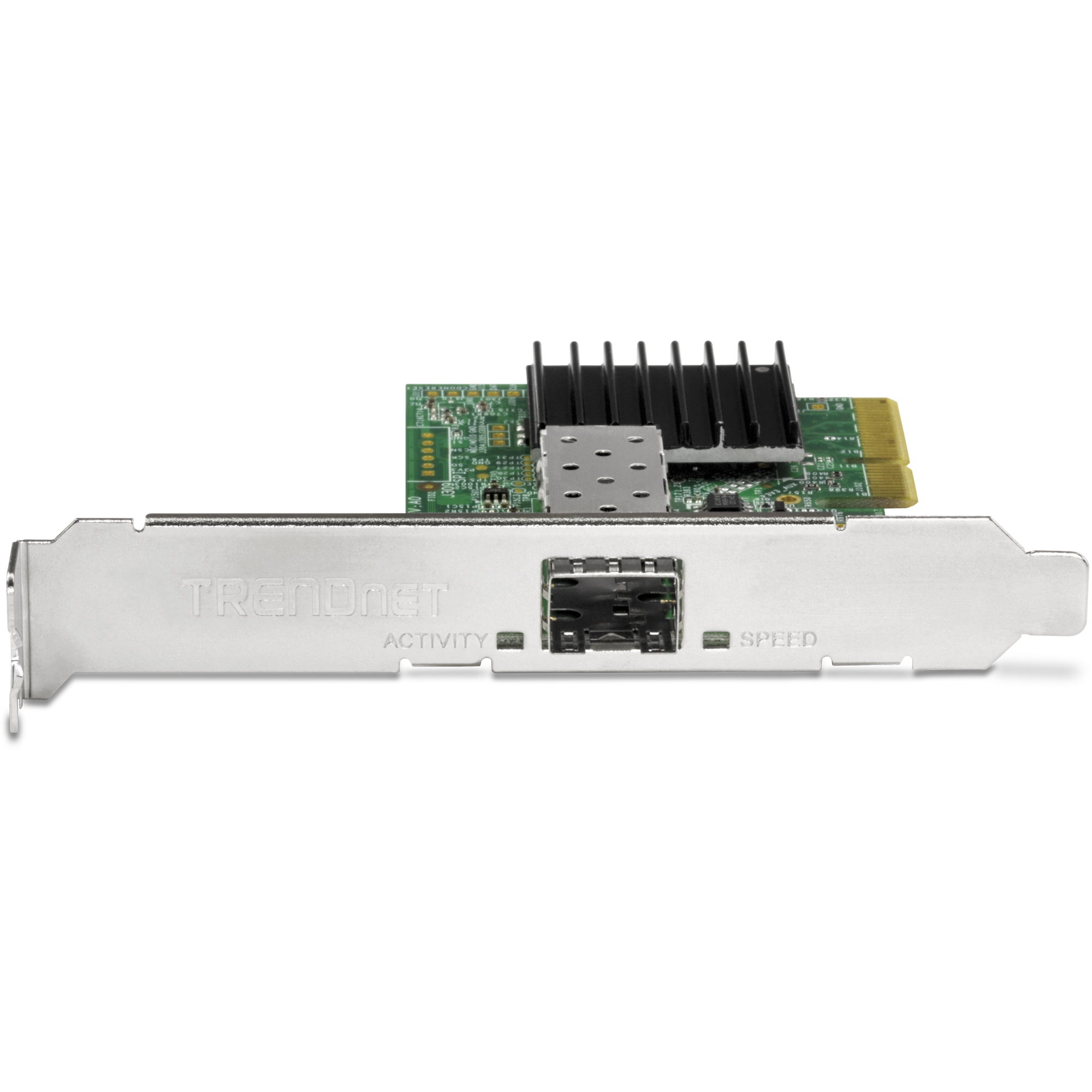

TRENDnet's 10 Gigabit PCIe SFP+ Network Adapter, model TEG-10GECSFP, converts a free PCI Express slot into a 10 Gigabit SFP+ slot. The 10G SFP+ PCIe adapter includes advanced features such as jumbo frame and VLAN tagging support. The included standard and low profile brackets are compatible with Windows® and Linux® desktop computer designs.
| Standards | - IEEE 802.1Q
- IEEE 802.3ae
- IEEE 802.3x
- IEEE 802.3bz
- IEEE 802.3u
|
|---|
| Hardware Interface | - PCIe 2.0 x4 interface
- 1 x 10Gbps SFP+ slot (Supported speeds: 10Gbps / 5Gbps / 2.5Gbps / 1Gbps) (SFP+ modules sold separately: TEG-10GBSR, TEG-10GBS10, TEG-10GBS40)
- LED indicator
|
|---|
| Data Transfer Rate | - SFP: 1000Mbps (full duplex), 10Gbps (full duplex)
|
|---|
| Compatibility | - Windows® 10, 8.1, 8, 7
- Windows® Server 2012, 2012 R2, 2008, 2008 R2
- Linux® 2.6.x, 3.x.x, 4.6.x or later
- Microsoft® Hyper-V
- Oracle® VirtualBox
|
|---|
| Jumbo Frames | |
|---|
| Special Features | - 10G SFP+ for high speed network connectivity
- Compatible with standard 10G SFP+ modules and Direct Attach Copper (DAC) cables
- Windows Server support
- Microsoft® Hyper-V hypervisor support for virtualization
|
|---|
| Additional Support | - 802.1Q VLAN Tagging
- Microsoft Scalable Networking
- Receive-side scaling (RSS)
- Message Signaled Interrupts (MSI)
- IP, TCP, and UDP checksum offloading
- Minimize overhead with reduced host bus traffic and CPU utilization
|
|---|
| Power | |
|---|
| Operating Temperature | - 0° – 40° C (32° – 104° F)
|
|---|
| Operating Humidity | |
|---|
| Certifications | |
|---|
| Dimensions | - 87 x 62 x 18mm (3.4 x 2.4 x 0.7 in.)
|
|---|
| Weight | |
|---|
| Warranty | |
|---|
PACKAGE CONTENTS |
- TEG-10GECSFP
- Quick Installation Guide
- Standard & low-profile brackets
|
