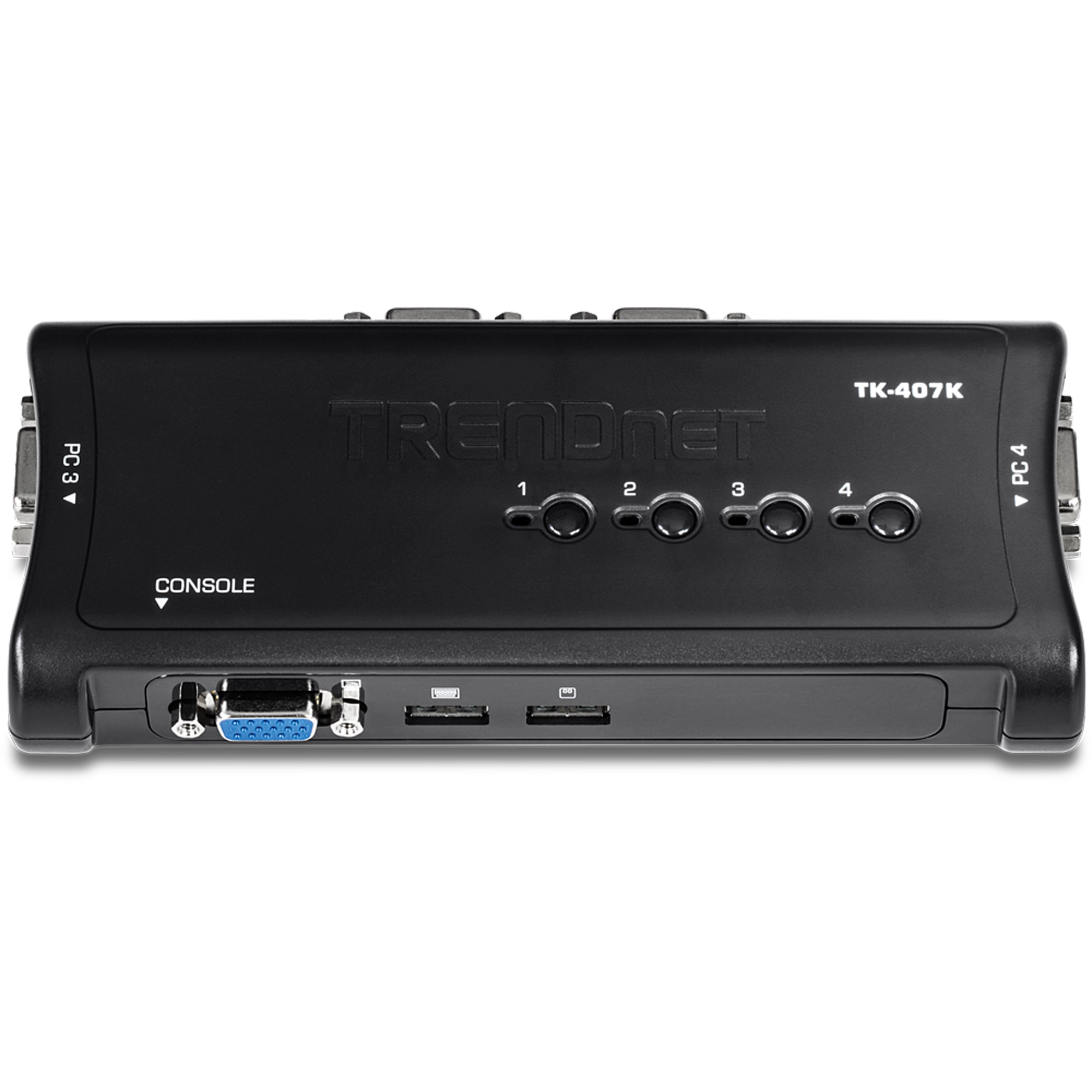

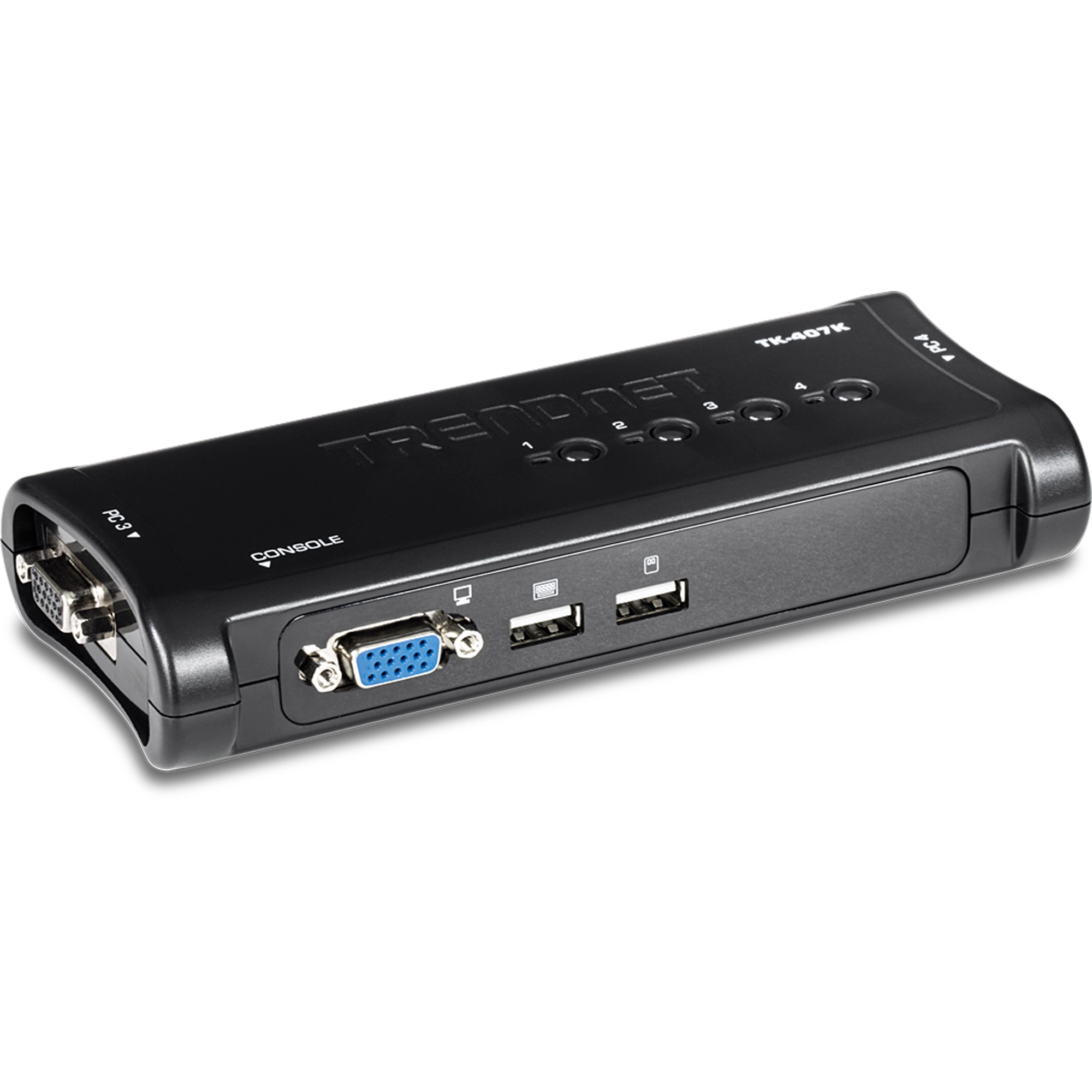

TRENDnet’s 4-Port USB KVM Switch, model TK-407K, lets you manage four PCs with just one set of keyboard, mouse, and monitor. This compact USB KVM switch is designed for VGA systems with USB mouse and keyboard connections. No driver installation required, simply plug in the devices to control four computers. Convenient top panel push buttons allow you to easily switch between different computers. Separate sets of KVM cables are included with the USB KVM Switch; users can start controlling four PCs instantly. The included KVM cables also provide power to the USB KVM Switch, eliminating the need for a power adapter. Hot Key operations provide immediate access to KVM features, such as computer switching, and auto-scanning.
| Console Port Connectors | - 1 x VGA /SVGA HDB 15-pin (Female)
- 2 x USB ports (Keyboard / Mouse)
|
|---|
| Computer Interface (up to 4) | - 1 x USB Type A
- 1 x VGA /SVGA HDB 15-pin (Female)
|
|---|
| Cables (4 sets) | - 2 sets: 1.2m (4 ft.)
- 2 sets: 1.8m (6 ft.)
- VGA /SVGA (Male) to VGA /SVGA (Male) / USB Type A
|
|---|
| Monitor Resolution | |
|---|
| Switching Control | - Front panel push buttons
- Keyboard hot key commands
- Auto-Scan interval: 10 secs
|
|---|
| Operating Temperature | - 0° – 40° C (32° – 104° F)
|
|---|
| Operating Humidity | |
|---|
| Power | - USB powered
- Max. consumption: 0.7W
|
|---|
| Dimensions | - 167 x 80 x 28mm (6.6 x 3.2 x 1.1 in.)
|
|---|
| Weight | |
|---|
| Warranty | |
|---|
| Certifications | |
|---|
PACKAGE CONTENTS |
- TK-407K
- Quick Installation Guide
- 2 x KVM Cables (1.2m/4 ft.)
- 2 x KVM Cables (1.8m/6 ft.)
|
