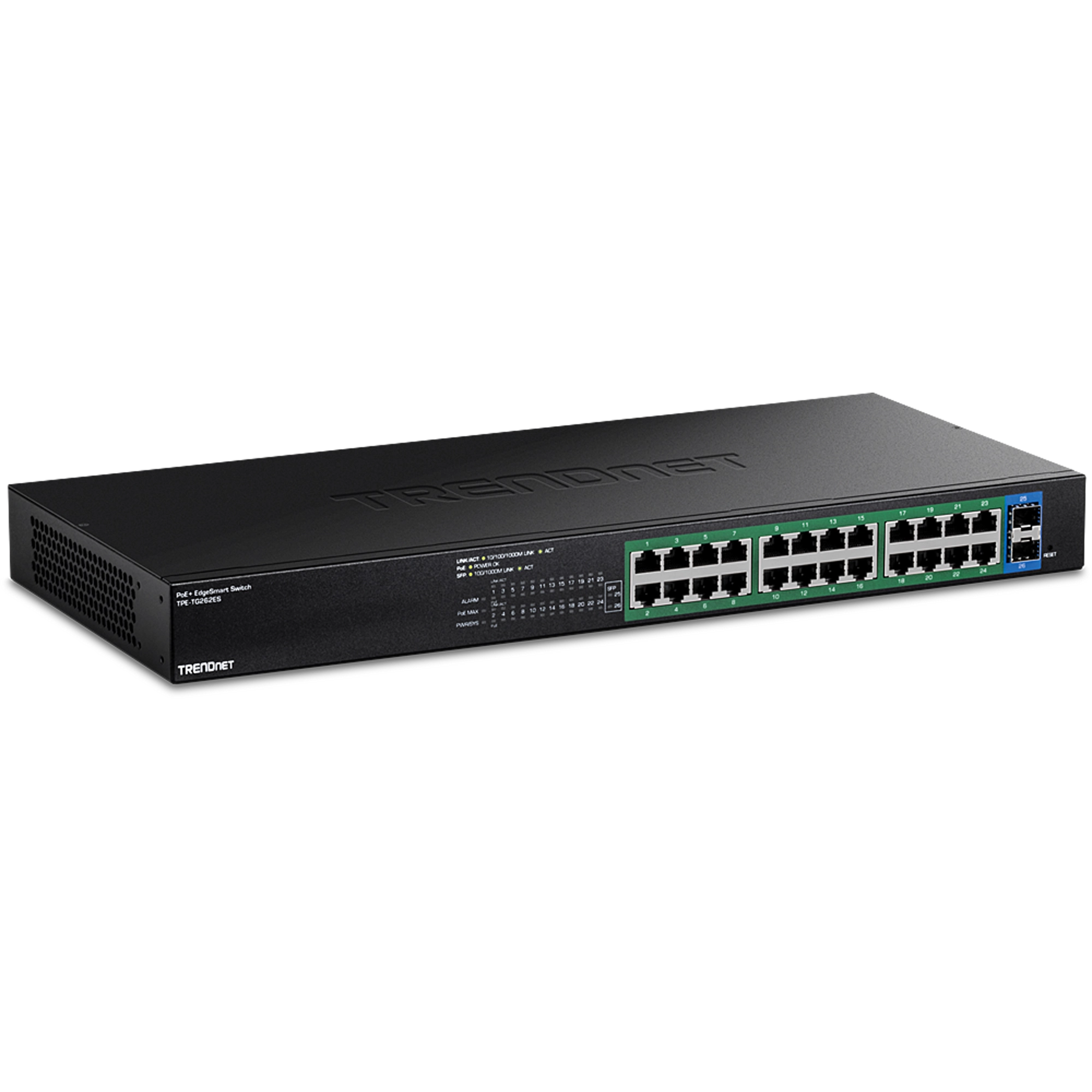

TRENDnet’s 26-Port Gigabit EdgeSmart PoE+ Switch, model TPE-TG262ES, is a cost-effective rackmount easy smart PoE+ switch solution for high-speed gigabit PoE+ applications. This EdgeSmart switch features the most commonly used managed switch features, reducing unnecessary switch complexity. The web-based management interface offers features for traffic control, static link aggregation, RSTP, VLAN, QoS, and monitoring. TRENDnet’s TPE-TG262ES easy smart PoE+ switch provides 24 gigabit PoE+ ports for connecting network devices, such as wireless access points, IP cameras, and VoIP handsets; and two gigabit SFP ports for long-distance fiber connectivity.
| Standards | - IEEE 802.1d
- IEEE 802.1w
- IEEE 802.1p
- IEEE 802.1Q
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3x
- IEEE 802.3z
- IEEE 802.3ab
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.3az
|
|---|

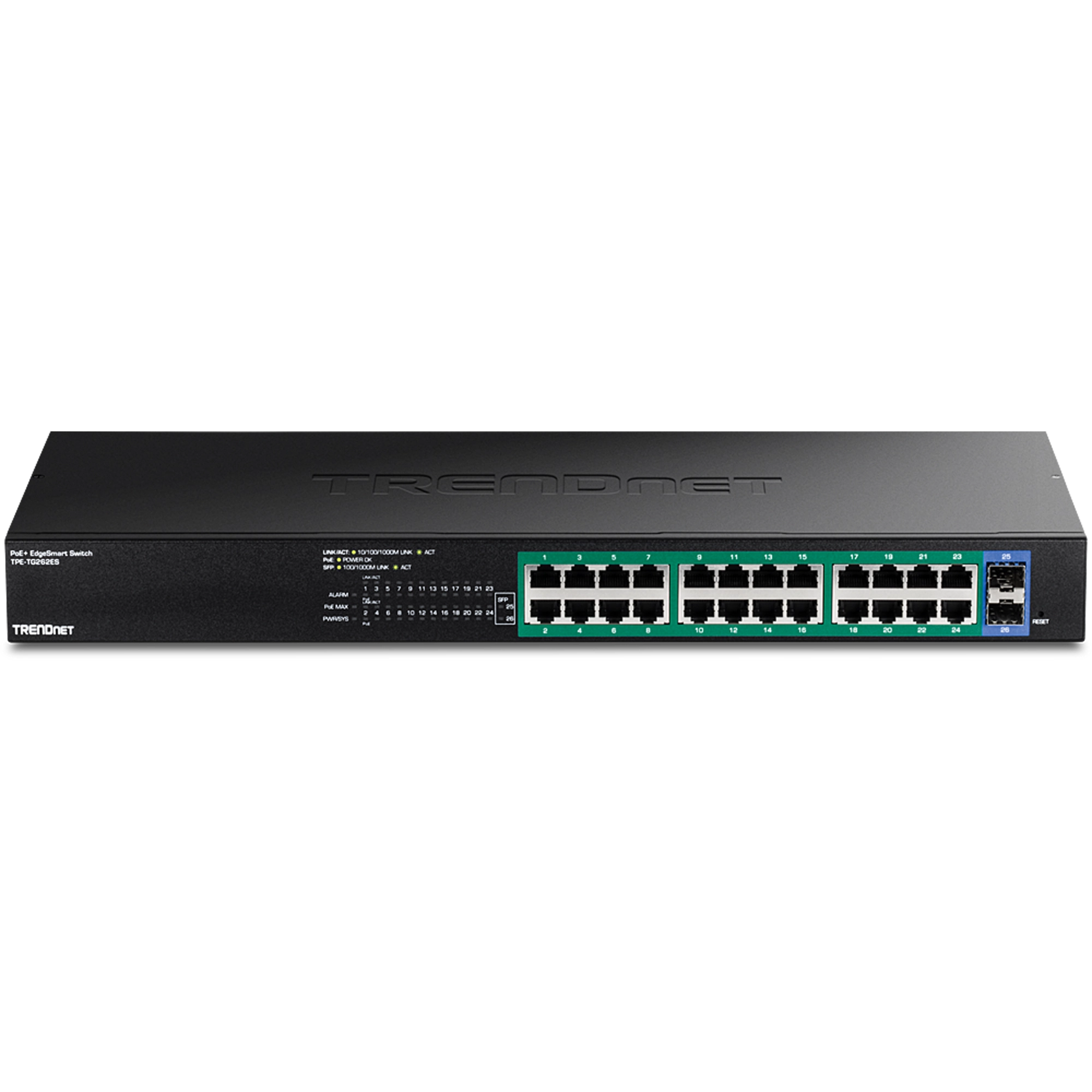

| Device Interface | - 24 x Gigabit PoE+ ports
- 2 x Gigabit SFP ports (100Mbps / 1000Mbps)
- LED indicators
- Reset button
|
|---|
| Data Transfer Rate | - Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
- Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
- Gigabit Ethernet: 2000Mbps (full duplex)
|
|---|
| Performance | - Switch fabric: 52Gbps
- RAM buffer: 512KB
- MAC Address Table: 8K entries
- Jumbo Frames: 9KB
- Forwarding rate: 38.69Mpps (64-byte packet size)
|
|---|
| Management | - HTTP Web based GUI
- SNMP v1, v2c
- Cable diagnostic test
- Backup/Restore Configuration
- Upload Firmware
|
|---|
| Spanning Tree | - IEEE 802.1d STP (spanning tree protocol)
- IEEE 802.1w RSTP (rapid spanning tree protocol)
|
|---|
| Link Aggregation | - Static link aggregation (up to 3 groups)
|
|---|
| Quality of Service (QoS) | - Port-based QoS
- 802.1p Class of Service (CoS)
- DSCP (Differentiated Services Code Point)
- Bandwidth Control/Rate Limiting per port (Min. Limit: 16Kbps)
- Queue Scheduling: Strict Priority (SP), Weighted Fair Queueing (WFQ)
|
|---|
| VLAN | - Port-based VLAN
- 802.1Q Tagged VLAN
- Up to 32 VLAN groups, ID Range 1-4094
- Private VLAN
- Asymmetric VLAN
- Voice VLAN (5 user defined OUIs)
|
|---|
| Multicast | - IGMP Snooping v1/2/3
- Block unknown multicast source
- Up to 32 multicast groups
|
|---|
| Port Mirror | |
|---|
| Storm Control | - Broadcast (Min. Limit: 16Kbps)
- Multicast (Min. Limit: 16Kbps)
- Loopback Detection
|
|---|

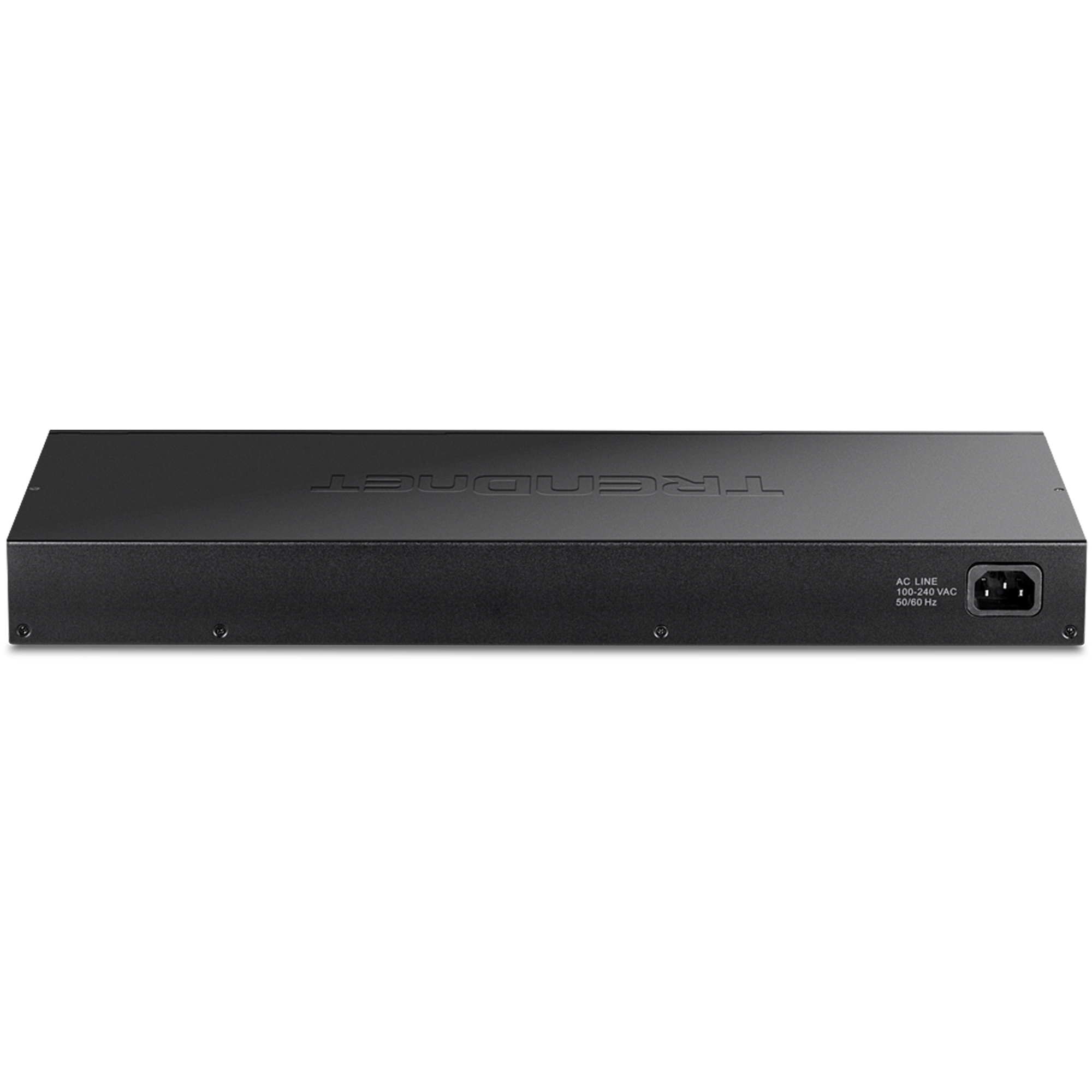

| Power | - Input: 100 – 240V AC, 50/60Hz, 4.4A
- Max. consumption: 14.93W (without PD load) / 399.41W (with full PD load)
|
|---|
| PoE | - PoE budget: 380W
- 802.3at: Up to 30W per port
- PoE Mode A: Pins 1,2 for power + and pins 3,6 for power -
- PD auto classification
- Over current/short circuit protection
|
|---|
| Fan/Acoustics | - Quantity: 2
- Smart Fans
- Noise Level: 51 dBa (max.)
|
|---|
| MTBF | |
|---|
| Operating Temperature | - 0° – 40° C (32° – 104° F)
|
|---|
| Operating Humidity | |
|---|
| Dimensions | - 440 x 195 x 44mm (17.3 x 7.68 x 1.73 in.)
|
|---|
| Weight | |
|---|
| Certifications | |
|---|
| Warranty | |
|---|
PACKAGE CONTENTS |
- TPE-TG262ES
- Quick Installation Guide
- Power cord (1.5m / 5 ft.)
- Rackmount kit
|
